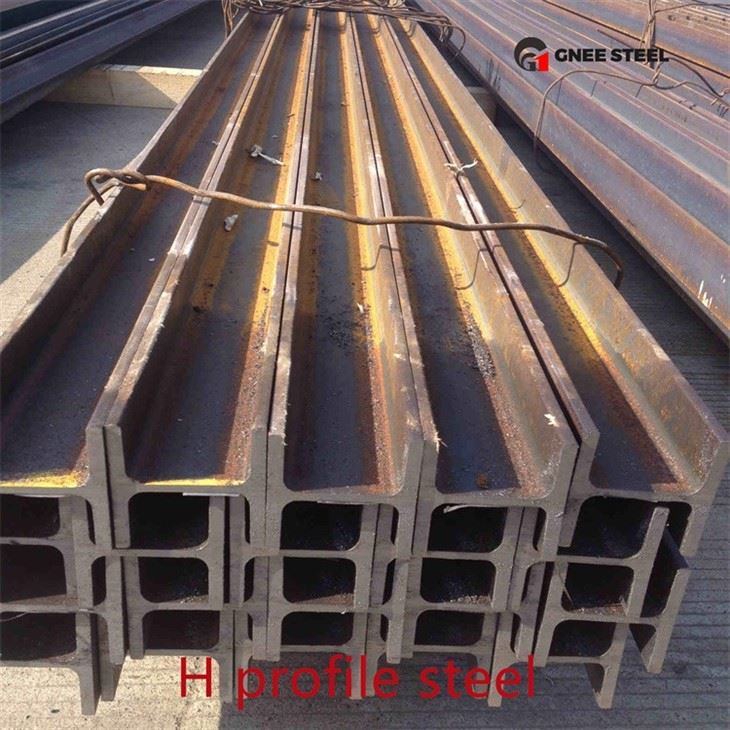

Q235 Q235A Q235B Structural Steel Beams
Q235 H-beam is an ordinary carbon structural steel used throughout China. It is also known as Q235A, Q235B, Q235C and Q235D. Since it is a low carbon steel, it does not require heat treatment in production. q denotes the yield point and 235 denotes the yield strength. It has good plasticity and weldability.
Q235 Grade structural steel beams Chemical Composition
| C | P | S | |||||
| Q235 | Q235A | 0.22 | 0.35 | 1.40 | 0.045 | 0.050 | |
| Q235B | 0.20 | 0.35 | 1.40 | 0.045 | 0.045 | ||
| Q235C | 0.17 | 0.35 | 1.40 | 0.040 | 0.040 | ||
| Q235D | 0.17 | 0.35 | 1.40 | 0.035 | 0.035 | ||
| d Less than or equal to 16 | 16< d ≤40 | 40< d ≤100 | 100< d ≤150 | 150< d ≤200 | d Less than or equal to 100 | ||
| Q235 | Q235A | 235 | 225 | 215 | 195 | 185 | 370-500 |
| Q235B | |||||||
| Q235C | |||||||
| Q235D | |||||||
| Q235 | Q235A | – | – |
| Q235B | +20 | 27 | |
| Q235C | 0 | ||
| Q235D | -20 | ||
Q235 Grade Structural Steel H Beam Product Details
In GB/T {{0}} standard, carbon structural steel Q235 H shaped steel are classified into four grades: A, B, C and D according to metallurgical quality.The chemical composition of Q235A, B, C and D H section beam is different.The sulfur content of A, B, C and D decreases in the order of A, B, C and D. The phosphorus content of A and B is the same, followed by C, and the phosphorus content of D is the least. The different grades of Q235A, Q235B, Q235C and Q235D represent different impact temperatures; A means no impact, B means above 20 degrees, C means above 0 degrees and D means above -20 degrees.
We supply a full range of profile steel products. If you have any needs about Q235 Q235A Q235B Structural Steel Beams or other angle steel products, please contact us.
